Hydrogen Fuel Cells

Hydrogen can be used to generate electricity. When Hydrogen and Oxygen combines under special conditions and in presence of catalysts, electricity and water is generated. There are several fuel cell technologies - Proton Exchange Membrane, Solid Oxide Fuel Cell, Alkaline Fuel Cell, etc.. Fuel cells in combination with hydrogen storage or supply can be used in diverse applications like electric vehicles, unmanned aerial vehicles, telecom towers, datacenters, etc..

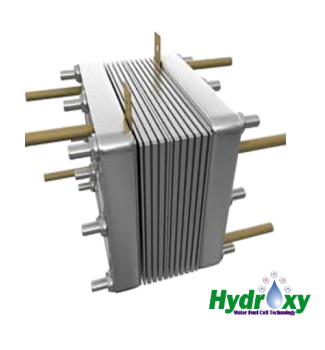

PEM Fuel Cell Stack
	Proton exchange membrane fuel cells, also known as polymer electrolyte membrane (PEM) fuel cells (PEMFC), are a type of fuel cell being developed for transport applications as well as for stationary fuel cell applications and portable fuel cell applications. Their distinguishing features include lower temperature/pressure ranges (50 to 100 °C) and a special polymer electrolyte membrane. This product can be widely used in portable power and individual transport applications such as bicycles and wheelchairs. It is the lightest, most compact 500W system. It is simple, air-breathing, air-cooled, self-humidified system designed for continuous operation. This semi-integrated unit is provided in kit format complete with air blower, control electronics and hydrogen supply valve. Engineers and researchers within large corporations, government organizations, research institutes and universities find it extremely useful..
FEATURES: • Rated Power: 500W • Performance: 21.6V/ 24A • Max Stack Temp: 65C • H2 Pressure: 0.45-0.55bar • H2 Purity: >99.995% dry H2 • Humidification: self-humidified • Dimension: 21.5cm x 12.5cm x 18cm • Flow rate at max output: 7LPM • Efficiency of Stack: 40% @ 21.6V • Low Voltage shut down: 18V • Over current shut down: 30A •	Price: Request for Quote

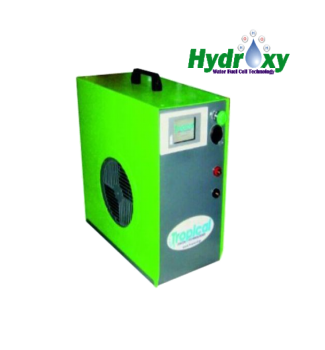

Fuel Cell Power Generator

TB-1000 Hydrogen Fuel Cell Power System, produces 1000W nominal electric power using the Proton Exchange Membrane (PEM) technology.

The membrane on the fuel cell stack is converting hydrogen into electric power and the only “pollutant” is clean water. This power generator produces high quality electric power 110V or 230V AC & 12V, 24V or 48 DC (other voltages on request).

It is designed to used as an Uninterruptable Power System (UPS), back-up power system, as a stand alone power generator providing electricity to our homes, in grid back up, as solar hybrid, in telecommunication towers or military applications or remote applications. Its main advantages are: quite in operation, small in size & light weight produces zero emissions, minimal maintenance, reliable, stable & quick start operation. .

FEATURES:
• Input: 12VDC
• Series / parallel Cell.
• Can produce upto 2.0LPM of HHO*
• No. of Plates: 21 plates
• Size: 4"x4".
• Material: 316L
• End Plates: High strength Plastics
• Electrical terminals with wing nuts.
• Quality gaskets for years of leak-free operation.
• Gas connections with Push In type, Swivel joint Elbow.

Price : Request for Quote

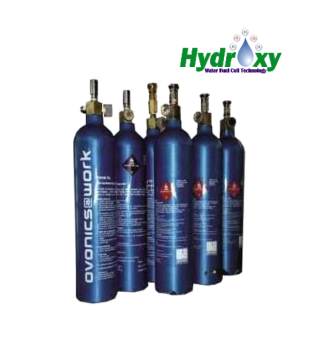

Hydrogen Storage Tank

Solid Hydrogen Storage canisters have been designed to comply with rigorous standards and have undergone extensive testing for product safety. Canisters feature DOT 3AL cylinders, manual shutoff valves, and pressure relief devices certified to CGA S-1.1 for either CG-9 or CG-12 type devices. Metal hydride, formed when metal atoms bond with hydrogen to form stable compounds, are ideal mediums for portable hydrogen fuel storage. Metal hydrides are extremely well suited for use in consumer products requiring safety and ease of operation. Refueling can be simply performed by replacing a small hydrogen metal hydride canister.

APPLICATIONS
• Customizable metal hydrides to fit various fuel cell systems power requirements
• Onsite Hydrogen storage to attain a Self Sustaining Fuel Cell System.
• Ideal for hydrogen-fuelled power generation.
• Hydrogen for storage purposes to cater for future usage.
• Industrial applications such as hydrogen vehicles, UPS, fuel cell systems, portable equipments, etc.

ADVANTAGES:
• Long term stability
• Long life (over 1000 charge cycles)
• Ambient temperature operation (25 ⁰C nominal)
• Fast re-filing time
• Light weight aluminum metal hydrides
• Good resistance to impurities
• Safe storage due to low pressure system
• Compact in size (compared to compressed hydrogen cylinder)
• Portability & mobility

Price : Request for Quote

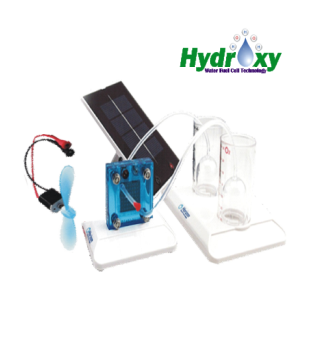

Solar Hydrogen Education Set

With this experiment set you have freedom to invent your own clean energy applications using fuel cells and renewable hydrogen created using solar energy and water. This new set is an optimal tool for inspiration and education in classrooms, as kids get to develop their own applications using a zero-carbon fuel. The kit also comes with a small electric motor and propeller blade as the starting point for motorized applications you can build using your futuristic solar energy storage device.

The set comes with a complete curriculum on renewable energy with an easy-to-follow experiment manual, assembly guide, flash animations, and background history of the technology.

Kit Contents
• Chassis with an LED light and motor
• Reversible (PEM) fuel cell
• 0.75 Watt solar cell
• 2 x 2mm Connecting leads
• Battery pack with connecting leads
• Hydrogen tank• Oxygen tank
• Inner Gas containers
• Plastic plug pins for fuel cell
• Transparent silicon tubing
• Syringe
• Assembly instructions

FEATURES:
• Turn solar energy Into hydrogen (chemical) energy!
• Build your own solar powered inventions
• The Effect of Heat on Solar Panels
• The Effect of Shade on Solar Panels
• The Effect of Tilt Angle on Solar Panels
• Finding the Solar Panel's Maximum Power Point
• Generate hydrogen and oxygen from water using Electrolysis
• Generate electricity from hydrogen and oxygen using FuelCell
• Determining the minimum voltage for water decomposition
• Polarization states for hydrogen fuel cells

Price : Request for Quote
